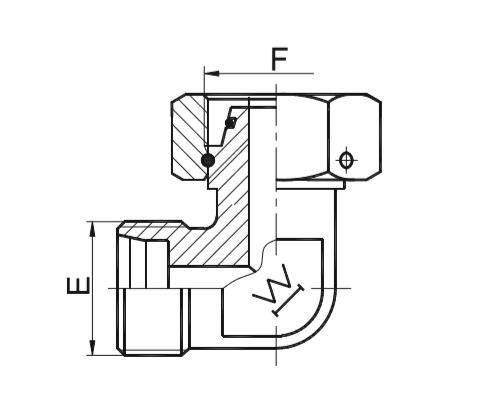

2C9外螺纹内螺纹90°弯
| 系列 | 代号 PART NO. |
螺纹 THREAD | 管子外径 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 |
工作压力 (bar) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1、D2 | L1 | L2 | L3 | L4 | S1 | S2、S3 | ||||
|
L
|
2C9-12W
|
M12X1.5
|
M12X1.5
|
06
|
19
|
12
|
26
|
27
|
12
|
14
|
34
|
500
|
|
2C9-14W
|
M14X1.5
|
M14X1.5
|
08
|
21
|
14
|
27.5
|
29
|
12
|
17
|
43
|
500
|
|
|
2C9-16W
|
M16X1.5
|
M16X1.5
|
10
|
22
|
15
|
29
|
30
|
14
|
19
|
58
|
500
|
|
|
2C9-18W
|
M18X1.5
|
M18X1.5
|
12
|
24
|
17
|
29.5
|
32
|
17
|
22
|
81
|
400
|
|
|
2C9-22W
|
M22X1.5
|
M22X1.5
|
15
|
28
|
21
|
32.5
|
36
|
19
|
27
|
128
|
400
|
|
|
2C9-26W
|
M26X1.5
|
M26X1.5
|
18
|
31
|
23.5
|
35.5
|
40
|
24
|
32
|
197
|
400
|
|
|
2C9-30W
|
M30X2
|
M30X2
|
22
|
35
|
27.5
|
38.5
|
44
|
27
|
36
|
258
|
250
|
|
|
2C9-36W
|
M36X2
|
M36X2
|
28
|
38
|
30.5
|
41.5
|
47
|
36
|
41
|
370
|
250
|
|
|
2C9-45W
|
M45X2
|
M45X2
|
35
|
45
|
34.5
|
51
|
36
|
41
|
50
|
593
|
250
|
|
|
2C9-52W
|
M52X2
|
M52X2
|
42
|
51
|
40
|
56
|
41
|
50
|
60
|
993
|
250
|
|
|
S
|
2D9-14W
|
M14X1.5
|
M14X1.5
|
06
|
23
|
16
|
27
|
31
|
12
|
17
|
48
|
800
|
|
2D9-16W
|
M16X1.5
|
M16X1.5
|
08
|
24
|
17
|
27.5
|
32
|
14
|
19
|
65
|
800
|
|
|
2D9-18W
|
M18X1.5
|
M18X1.5
|
10
|
25
|
17.5
|
30
|
34
|
17
|
22
|
92
|
800
|
|
|
2D9-20W
|
M20X1.5
|
M20X1.5
|
12
|
29
|
21.5
|
31
|
38
|
17
|
24
|
107
|
630
|
|
|
2D9-22W
|
M22X1.5
|
M22X1.5
|
14
|
30
|
22
|
35
|
40
|
19
|
27
|
146
|
630
|
|
|
2D9-24W
|
M24X2
|
M24X2
|
16
|
33
|
24.5
|
36.5
|
43
|
24
|
30
|
212
|
630
|
|
|
2D9-30W
|
M30X2
|
M30X2
|
20
|
37
|
26.5
|
44.5
|
48
|
27
|
36
|
309
|
420
|
|
|
2D9-36W
|
M36X2
|
M36X2
|
25
|
42
|
30
|
50
|
54
|
36
|
46
|
547
|
420
|
|
|
2D9-42W
|
M42X2
|
M42X2
|
30
|
49
|
35.5
|
55
|
62
|
41
|
50
|
744
|
420
|
|
|
2D9-52W
|
M52X2
|
M52X2
|
38
|
57
|
41
|
63
|
72
|
50
|
60
|
1222
|
420
|
|
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如2C9-30W/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example2C9-30W/RN.
