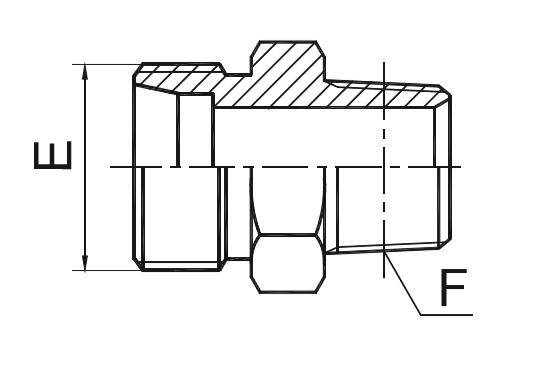

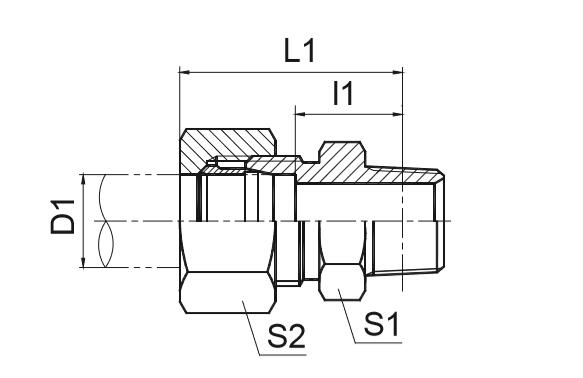

1CN/1DN布锥管外螺纹
| 系列 | 代号 PART NO. |
螺纹 THREAD |
管子外径 TUBEO.D | 尺寸 DIMENSIONS | 重量 克/件 |
工作压力 (bar) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1 | L1 | L2 | L3 | L4 | S1 | S2 | ||||
| L |
1CN-12-02
|
M12X1.5
|
NPT1/8＂X27
|
06
|
24
|
17
|
10
|
32
|
12
|
14
|
12
|
315
|
|
1CN-12-04
|
M12X1.5
|
NPT1/4＂X18
|
06
|
30
|
23
|
14.5
|
38
|
17
|
14
|
27
|
315
|
|
|
1CN-12-06
|
M12X1.5
|
NPT3/8＂X18
|
06
|
30
|
23
|
14.5
|
38
|
19
|
14
|
32
|
315
|
|
|
1CN-12-08
|
M12X1.5
|
NPT1/2＂X14
|
06
|
36
|
29
|
19.5
|
44
|
22
|
14
|
53
|
315
|
|
|
1CN-14-02
|
M14X1.5
|
NPT1/8＂X27
|
08
|
25
|
18
|
10
|
33
|
14
|
17
|
16
|
315
|
|
|
1CN-14-04
|
M14X1.5
|
NPT1/4＂X18
|
08
|
30
|
23
|
14.5
|
38
|
17
|
17
|
25
|
315
|
|
|
1CN-14-06
|
M14X1.5
|
NPT3/8＂X18
|
08
|
30
|
23
|
14.5
|
38
|
19
|
17
|
34
|
315
|
|
|
1CN-14-08
|
M14X1.5
|
NPT1/2＂X14
|
08
|
36
|
29
|
19.5
|
44
|
22
|
17
|
54
|
315
|
|
|
1CN-16-02
|
M16X1.5
|
NPT1/8＂X27
|
10
|
25
|
18
|
10
|
33
|
17
|
19
|
19
|
315
|
|
|
1CN-16-04
|
M16X1.5
|
NPT1/4＂X18
|
10
|
31
|
24
|
14.5
|
39
|
17
|
19
|
25
|
315
|
|
|
1CN-16-06
|
M16X1.5
|
NPT3/8＂X18
|
10
|
32
|
25
|
14.5
|
40
|
19
|
19
|
40
|
315
|
|
|
1CN-16-08
|
M16X1.5
|
NPT1/2＂X14
|
10
|
37
|
30
|
19.5
|
45
|
22
|
19
|
54
|
315
|
|
|
1CN-18-02
|
M18X1.5
|
NPT1/8＂X27
|
12
|
26
|
19
|
10
|
34
|
19
|
22
|
52
|
315
|
|
|
1CN-18-04
|
M18X1.5
|
NPT1/4＂X18
|
12
|
32
|
25
|
14.5
|
40
|
19
|
22
|
31
|
315
|
|
|
1CN-18-06
|
M18X1.5
|
NPT3/8＂X18
|
12
|
32
|
25
|
14.5
|
40
|
19
|
22
|
37
|
315
|
|
|
1CN-18-08
|
M18X1.5
|
NPT1/2＂X14
|
12
|
37
|
30
|
19.5
|
45
|
22
|
22
|
62
|
315
|
|
|
1CN-22-06
|
M22X1.5
|
NPT3/8＂X18
|
15
|
33
|
26
|
14.5
|
41
|
24
|
27
|
53
|
315
|
|
|
1CN-22-08
|
M22X1.5
|
NPT1/2＂X14
|
15
|
38
|
31
|
19.5
|
46
|
24
|
27
|
63
|
315
|
|
|
1CN-22-12
|
M22X1.5
|
NPT3/4＂X14
|
15
|
39
|
32
|
19.5
|
47
|
30
|
27
|
112
|
315
|
|
|
1CN-26-06
|
M26X1.5
|
NPT3/8＂X18
|
18
|
34
|
26.5
|
14.5
|
43
|
27
|
32
|
69
|
315
|
|
|
1CN-26-08
|
M26X1.5
|
NPT1/2＂X14
|
18
|
39
|
31.5
|
19.5
|
48
|
27
|
32
|
79
|
315
|
|
|
1CN-26-12
|
M26X1.5
|
NPT3/4＂X14
|
18
|
39
|
31.5
|
19.5
|
48
|
30
|
32
|
104
|
315
|
|
|
1CN-30-08
|
M30X2
|
NPT1/2＂X14
|
22
|
41
|
33.5
|
19.5
|
50
|
32
|
36
|
96
|
160
|
|
|
1CN-30-12
|
M30X2
|
NPT3/4＂X14
|
22
|
41
|
33.5
|
19.5
|
50
|
32
|
36
|
108
|
160
|
|
|
1CN-30-16
|
M30X2
|
NPT1＂X11.5
|
22
|
47
|
39.5
|
24.5
|
56
|
36
|
36
|
174
|
160
|
|
|
1CN-36-12
|
M36X2
|
NPT3/4＂X14
|
28
|
42
|
34.5
|
19.5
|
51
|
41
|
41
|
157
|
160
|
|
|
1CN-36-16
|
M36X2
|
NPT1＂X11.5
|
28
|
47
|
39.5
|
24.5
|
56
|
41
|
41
|
197
|
160
|
|
|
1CN-36-20
|
M36X2
|
NPT1.1/4＂X11.5
|
28
|
49
|
41.5
|
25
|
58
|
46
|
41
|
266
|
160
|
|
|
1CN-45-16
|
M45X2
|
NPT1＂X11.5
|
35
|
50
|
39.5
|
24.5
|
61
|
46
|
50
|
280
|
160
|
|
|
1CN-45-20
|
M45X2
|
NPT1.1/4＂X11.5
|
35
|
51
|
40.5
|
25
|
62
|
46
|
50
|
285
|
160
|
|
|
1CN-52-20
|
M52X2
|
NPT1.1/4＂X11.5
|
42
|
53
|
42
|
25
|
65
|
55
|
60
|
382
|
160
|
|
|
1CN-52-24
|
M52X2
|
NPT1.1/2＂X11.5
|
42
|
53
|
42
|
26
|
65
|
55
|
60
|
377
|
160
|
|
|
S
|
1DN-14-02
|
M14X1.5
|
NPT1/8＂X27
|
06
|
28
|
21
|
10
|
36
|
14
|
17
|
21
|
630
|
|
1DN-14-04
|
M14X1.5
|
NPT1/4＂X18
|
06
|
35
|
28
|
14.5
|
43
|
17
|
17
|
37
|
630
|
|
|
1DN-14-06
|
M14X1.5
|
NPT3/8＂X18
|
06
|
33
|
26
|
14.5
|
41
|
19
|
17
|
40
|
630
|
|
|
1DN-14-08
|
M14X1.5
|
NPT1/2＂X14
|
06
|
42
|
35
|
19.5
|
50
|
22
|
17
|
71
|
630
|
|
|
1DN-16-04
|
M16X1.5
|
NPT1/4＂X18
|
08
|
35
|
28
|
14.5
|
43
|
17
|
19
|
38
|
630
|
|
|
1DN-16-06
|
M16X1.5
|
NPT3/8＂X18
|
08
|
35
|
28
|
14.5
|
43
|
19
|
19
|
46
|
630
|
|
|
1DN-16-08
|
M16X1.5
|
NPT1/2＂X14
|
08
|
42
|
35
|
19.5
|
50
|
22
|
19
|
73
|
630
|
|
|
1DN-18-04
|
M18X1.5
|
NPT1/4＂X18
|
10
|
35
|
27.5
|
14.5
|
44
|
19
|
22
|
45
|
630
|
|
|
1DN-18-06
|
M18X1.5
|
NPT3/8＂X18
|
10
|
35
|
27.5
|
14.5
|
44
|
19
|
22
|
49
|
630
|
|
|
1DN-18-08
|
M18X1.5
|
NPT1/2＂X14
|
10
|
42
|
34.5
|
19.5
|
51
|
22
|
22
|
73
|
630
|
|
|
1DN-20-04
|
M20X1.5
|
NPT1/4＂X18
|
12
|
37
|
29.5
|
14.5
|
46
|
22
|
24
|
57
|
630
|
|
|
1DN-20-06
|
M20X1.5
|
NPT3/8＂X18
|
12
|
37
|
29.5
|
14.5
|
46
|
22
|
24
|
62
|
630
|
|
|
1DN-20-08
|
M20X1.5
|
NPT1/2＂X14
|
12
|
42
|
34.5
|
19.5
|
51
|
22
|
24
|
83
|
630
|
|
|
1DN-22-06
|
M22X1.5
|
NPT3/8＂X18
|
14
|
39
|
31
|
14.5
|
49
|
24
|
27
|
77
|
630
|
|
|
1DN-22-08
|
M22X1.5
|
NPT1/2＂X14
|
14
|
44
|
36
|
19.5
|
54
|
24
|
27
|
89
|
630
|
|
|
1DN-24-06
|
M24X1.5
|
NPT3/8＂X18
|
16
|
39
|
30.5
|
14.5
|
49
|
27
|
30
|
84
|
400
|
|
|
1DN-24-08
|
M24X1.5
|
NPT1/2＂X14
|
16
|
48
|
39.5
|
19.5
|
58
|
27
|
30
|
97
|
400
|
|
|
1DN-24-12
|
M24X1.5
|
NPT3/4＂X14
|
16
|
46
|
37.5
|
19.5
|
56
|
30
|
30
|
130
|
400
|
|
|
1DN-30-08
|
M30X2
|
NPT1/2＂X14
|
20
|
48
|
37.5
|
19.5
|
59
|
32
|
36
|
144
|
400
|
|
|
1DN-30-12
|
M30X2
|
NPT3/4＂X14
|
20
|
48
|
37.5
|
19.5
|
59
|
32
|
36
|
149
|
400
|
|
|
1DN-30-16
|
M30X2
|
NPT1＂X11.5
|
20
|
55
|
44.5
|
24.5
|
66
|
36
|
36
|
243
|
400
|
|
|
1DN-36-16
|
M36X2
|
NPT1＂X11.5
|
25
|
57
|
45
|
24.5
|
69
|
41
|
46
|
278
|
400
|
|
|
1DN-36-20
|
M36X2
|
NPT1.1/4＂X11.5
|
25
|
58
|
46
|
25
|
70
|
46
|
46
|
396
|
400
|
|
|
1DN-42-16
|
M42X2
|
NPT1＂X11.5
|
30
|
59
|
45.5
|
24.5
|
72
|
46
|
50
|
343
|
400
|
|
|
1DN-42-20
|
M42X2
|
NPT1.1/4＂X11.5
|
30
|
60
|
46.5
|
25
|
73
|
46
|
50
|
397
|
400
|
|
|
1DN-52-20
|
M52X2
|
NPT1.1/4＂X11.5
|
38
|
65
|
49
|
25
|
80
|
55
|
60
|
535
|
315
|
|
|
1DN-52-24
|
M52X2
|
NPT1.1/2＂X11.5
|
38
|
65
|
49
|
26
|
80
|
55
|
60
|
571
|
315
|
|
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CN-30-12/RN.
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example 1CN-30-12/RN.
