1CM/DM 公制螺纹胶垫密封
| 系列 | 代号 PART NO. |
螺纹 THREAD | 管子外径 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 |
工作压力 (bar) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

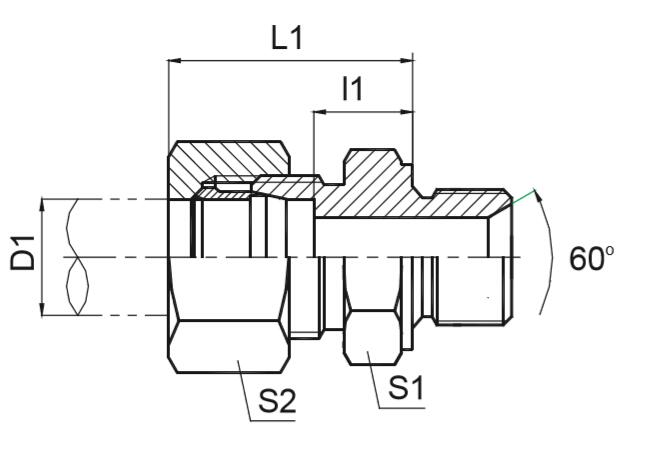

| E | F | D1 | L1 | L2 | L3 | L4 | S1 | S2 | ||||
|
L
|
1CM-12-10
|
M12X1.5
|
M10X1
|
06
|
23.5
|
8.5
|
8
|
23
|
14
|
14
|
13
|
500
|
|
1CM-14-12
|
M14X1.5
|
M12X1.5
|
08
|
29
|
10
|
10
|
25
|
17
|
17
|
22
|
500
|
|
|
1CM-16-14
|
M16X1.5
|
M14X1.5
|
10
|
30
|
11
|
11
|
26
|
19
|
19
|
29
|
500
|
|
|
1CM-16-16
|
M16X1.5
|
M16X1.5
|
10
|
31.5
|
12.5
|
12
|
24
|
22
|
19
|
39
|
420
|
|
|
1CM-16-18
|
M16X1.5
|
M18X1.5
|
10
|
31.5
|
12.5
|
12
|
27
|
24
|
19
|
49
|
400
|
|
|
1CM-16-22
|
M16X1.5
|
M22X1.5
|
10
|
35
|
14
|
14
|
29
|
27
|
19
|
79
|
400
|
|
|
1CM-18-14
|
M18X1.5
|
M14X1.5
|
12
|
30
|
11
|
11
|
26
|
19
|
22
|
30
|
400
|
|
|
1CM-18-16
|
M18X1.5
|
M16X1.5
|
12
|
31.5
|
12.5
|
12
|
27
|
22
|
22
|
39
|
400
|
|
|
1CM-18-18
|
M18X1.5
|
M18X1.5
|
12
|
31.5
|
12.5
|
12
|
27
|
24
|
22
|
46
|
400
|
|
|
1CM-18-22
|
M18X1.5
|
M22X1.5
|
12
|
35
|
14
|
14
|
29
|
27
|
22
|
73
|
400
|
|
|
1CM-22-16
|
M22X1.5
|
M16X1.5
|
15
|
32
|
13
|
12
|
28
|
24
|
27
|
50
|
400
|
|
|
1CM-22-18
|
M22X1.5
|
M18X1.5
|
15
|
32.5
|
13.5
|
12
|
29
|
24
|
27
|
63
|
400
|
|
|
1CM-22-22
|
M22X1.5
|
M22X1.5
|
15
|
36
|
15
|
14
|
30
|
27
|
27
|
75
|
400
|
|
|
1CM-26-18
|
M26X1.5
|
M18X1.5
|
18
|
33.5
|
14
|
12
|
30
|
27
|
32
|
67
|
400
|
|
|
1CM-26-22
|
M26X1.5
|
M22X1.5
|
18
|
36
|
14.5
|
14
|
31
|
27
|
32
|
72
|
400
|
|
|
1CM-30-22
|
M30X2
|
M22X1.5
|
22
|
38
|
16.5
|
14
|
33
|
32
|
36
|
94
|
250
|
|
|
1CM-30-26
|
M30X2
|
M26X1.5
|
22
|
40
|
16.5
|
16
|
33
|
32
|
36
|
100
|
250
|
|
|
1CM-30-27
|
M30X2
|
M27X2
|
22
|
42
|
18.5
|
16
|
35
|
32
|
36
|
164
|
250
|
|
|
1CM-36-33
|
M36X2
|
M33X2
|
28
|
43
|
17.5
|
18
|
34
|
41
|
41
|
275
|
250
|
|
|
1CM-45-42
|
M45X2
|
M42X2
|
35
|
48
|
17.5
|
20
|
39
|
50
|
50
|
350
|
250
|
|
|
1CM-52-48
|
M52X2
|
M48X2
|
42
|
52
|
19
|
22
|
42
|
55
|
60
|
355
|
250
|
|
|
S
|
1DM-14-12
|
M14X1.5
|
M12X1.5
|
06
|
32
|
13
|
10
|
28
|
17
|
17
|
41
|
800
|
|
1DM-16-14
|
M16X1.5
|
M14X1.5
|
08
|
34
|
15
|
11
|
30
|
19
|
19
|
53
|
800
|
|
|
1DM-18-16
|
M18X1.5
|
M16X1.5
|
10
|
34.5
|
15
|
12
|
31
|
22
|
22
|
59
|
800
|
|
|
1DM-20-18
|
M20X1.5
|
M18X1.5
|
12
|
36.5
|
17
|
12
|
33
|
24
|
24
|
70
|
630
|
|
|
1DM-20-22
|
M20X1.5
|
M22X1.5
|
12
|
39
|
17.5
|
14
|
34
|
27
|
24
|
100
|
630
|
|
|
1DM-22-20
|
M22X1.5
|
M20X1.5
|
14
|
41
|
19
|
14
|
37
|
27
|
27
|
96
|
630
|
|
|
1DM-24-18
|
M24X1.5
|
M18X1.5
|
16
|
38.5
|
18
|
12
|
36
|
27
|
30
|
86
|
630
|
|
|
1DM-24-22
|
M24X1.5
|
M22X1.5
|
16
|
41
|
18.5
|
14
|
37
|
27
|
30
|
93
|
800
|
|
|
1DM-30-27
|
M30X2
|
M27X2
|
20
|
47
|
20.5
|
16
|
42
|
32
|
36
|
147
|
420
|
|
|
1DM-36-33
|
M36X2
|
M33X2
|
25
|
53
|
23
|
18
|
47
|
41
|
46
|
260
|
420
|
|
|
1DM-42-42
|
M42X2
|
M42X2
|
30
|
57
|
23.5
|
20
|
50
|
50
|
50
|
415
|
420
|
|
|
1DM-52-48
|
M52X2
|
M48X2
|
38
|
64
|
26
|
22
|
57
|
55
|
60
|
560
|
420
|
|
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CM-30-27/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example 1CM-30-27/RN.
