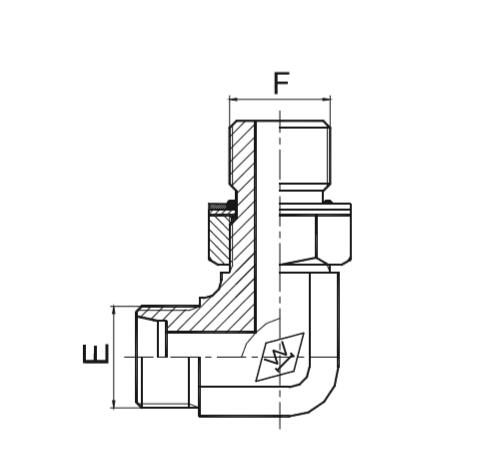

1CG9 90°度弯英管螺纹可调向”O”型密封
| 系列 | 代号 PART NO. |
螺纹 THREAD | 管子外径 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 |
工作压力 (bar) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1 | L1 | L2 | L3 | L4 | S1 | S2 | S3 | ||||
|
L
|
1CG9-14-04OG
|
M14X1.5
|
G1/4′′X19
|
08
|
23
|
16
|
32
|
31
|
14
|
19
|
17
|
59
|
315
|
|
1CG9-16-04OG
|
M16X1.5
|
G1/4′′X19
|
10
|
24
|
17
|
34
|
32
|
19
|
19
|
19
|
82
|
315
|
|
|
1CG9-18-06OG
|
M18X1.5
|
G3/8′′X19
|
12
|
26
|
19
|
37
|
34
|
19
|
22
|
22
|
96
|
250
|
|
|
1CG9-22-08OG
|
M22X1.5
|
G1/2′′X14
|
15
|
28
|
21
|
43
|
36
|
22
|
27
|
27
|
149
|
250
|
|
|
1CG9-26-08OG
|
M26X1.5
|
G1/2′′X14
|
18
|
31.5
|
24
|
46
|
40
|
27
|
27
|
32
|
221
|
250
|
|
|
1CG9-30-12OG
|
M30X2
|
G3/4′′X14
|
22
|
35.5
|
28
|
49
|
44
|
30
|
36
|
36
|
310
|
160
|
|
|
1CG9-36-16OG
|
M36X2
|
G1′′X11
|
28
|
38.5
|
31
|
59
|
47
|
36
|
41
|
41
|
455
|
160
|
|
|
1CG9-45-20OG
|
M45X2
|
G1.1/4′′X11
|
35
|
48.5
|
38
|
65
|
59
|
50
|
50
|
50
|
1043
|
160
|
|
|
1CG9-52-24OG
|
M52X2
|
G1.1/2′′X11
|
42
|
49
|
38
|
67
|
61
|
50
|
55
|
60
|
994
|
160
|
|
|
S
|
1DG9-14-04OG
|
M14X1.5
|
G1/4′′X19
|
06
|
22
|
15
|
32
|
30
|
14
|
19
|
17
|
56
|
315
|
|
1DG9-16-04OG
|
M16X1.5
|
G1/4′′X19
|
08
|
24
|
17
|
36
|
32
|
19
|
19
|
19
|
88
|
315
|
|
|
1DG9-18-06OG
|
M18X1.5
|
G3/8′′X19
|
10
|
25
|
18
|
38
|
34
|
19
|
22
|
22
|
98
|
250
|
|
|
1DG9-20-06OG
|
M20X1.5
|
G3/8′′X19
|
12
|
29
|
22
|
38
|
38
|
22
|
22
|
24
|
128
|
250
|
|
|
1DG9-22-08OG
|
M22X1.5
|
G1/2′′X14
|
14
|
30
|
22
|
43
|
40
|
22
|
27
|
27
|
147
|
250
|
|
|
1DG9-24-08OG
|
M24X2
|
G1/2′′X14
|
16
|
33
|
25
|
46
|
43
|
27
|
27
|
30
|
234
|
250
|
|
|
1DG9-30-12OG
|
M30X2
|
G3/4′′X14
|
20
|
38
|
28
|
51
|
49
|
30
|
36
|
36
|
344
|
250
|
|
|
1DG9-36-16OG
|
M36X2
|
G1′′X11
|
25
|
42
|
30
|
58
|
54
|
36
|
41
|
46
|
533
|
250
|
|
|
1DG9-42-20OG
|
M42X2
|
G1.1/4′′X11
|
30
|
49
|
36
|
64
|
62
|
50
|
50
|
50
|
1085
|
160
|
|
|
1DG9-52-24OG
|
M52X2
|
G1.1/2′′X11
|
38
|
50
|
34
|
70
|
65
|
50
|
55
|
60
|
1116
|
160
|
|
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CG9-30-12OG/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example1CG9-30-12OG/RN.
