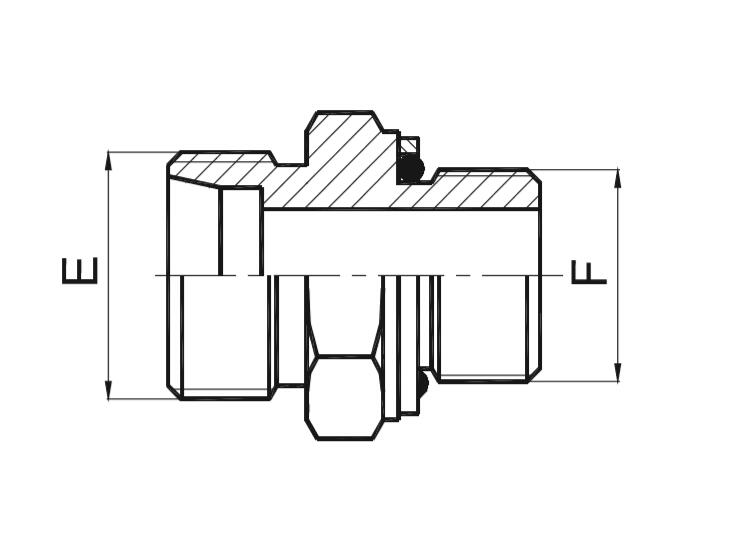

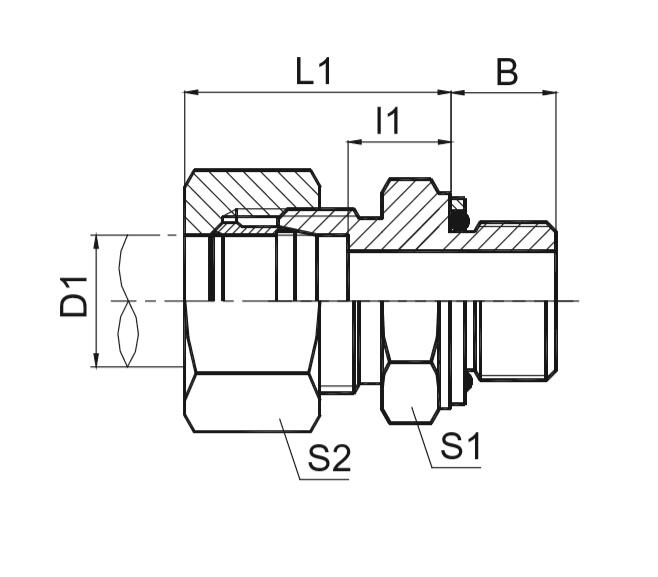

1CG/1DG英管螺纹"O"型圈密封
| 系列 | 代号 PART NO. |
螺纹 THREAD | 管子外径 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 |
工作压力 (bar) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1 | D2 | L1 | L2 | L3 | L4 | S1 | S2 | ||||
|
L
|
1CG-12-02
|
M12X1.5
|
G1/8＂X28
|
06
|
14
|
23.5
|
8.5
|
8
|
23
|
14
|
14
|
14
|
315
|
|
1CG-12-04
|
M12X1.5
|
G1/4＂X19
|
06
|
18
|
29
|
10
|
12
|
25
|
19
|
14
|
60
|
315
|
|
|
1CG-12-06
|
M12X1.5
|
G3/8＂X19
|
06
|
22
|
30.5
|
11.5
|
12
|
26
|
22
|
14
|
45
|
315
|
|
|
1CG-12-08
|
M12X1.5
|
G1/2＂X14
|
06
|
26
|
33
|
12
|
14
|
27
|
27
|
14
|
60
|
315
|
|
|
1CG-14-02
|
M14X1.5
|
G1/8＂X28
|
08
|
14
|
23.5
|
8.5
|
8
|
23
|
14
|
17
|
16
|
315
|
|
|
1CG-14-04
|
M14X1.5
|
G1/4＂X19
|
08
|
18
|
29
|
10
|
12
|
25
|
19
|
17
|
26
|
315
|
|
|
1CG-14-06
|
M14X1.5
|
G3/8＂X19
|
08
|
22
|
30.5
|
11.5
|
12
|
26
|
22
|
17
|
44
|
315
|
|
|
1CG-14-08
|
M14X1.5
|
G1/2＂X14
|
08
|
26
|
33
|
12
|
14
|
27
|
27
|
17
|
74
|
315
|
|
|
1CG-16-02
|
M16X1.5
|
G1/8＂X28
|
10
|
14
|
25.5
|
10.5
|
8
|
25
|
17
|
19
|
21
|
315
|
|
|
1CG-16-04
|
M16X1.5
|
G1/4＂X19
|
10
|
18
|
30
|
11
|
12
|
26
|
19
|
19
|
31
|
315
|
|
|
1CG-16-06
|
M16X1.5
|
G3/8＂X19
|
10
|
22
|
31.5
|
12.5
|
12
|
27
|
22
|
19
|
44
|
315
|
|
|
1CG-16-08
|
M16X1.5
|
G1/2＂X14
|
10
|
26
|
34
|
13
|
14
|
28
|
27
|
19
|
72
|
315
|
|
|
1CG-18-02
|
M18X1.5
|
G1/8＂X28
|
12
|
14
|
26.5
|
11.5
|
8
|
26
|
19
|
22
|
27
|
315
|
|
|
1CG-18-04
|
M18X1.5
|
G1/4＂X19
|
12
|
18
|
31
|
12
|
12
|
27
|
19
|
22
|
32
|
315
|
|
|
1CG-18-06
|
M18X1.5
|
G3/8＂X19
|
12
|
22
|
31.5
|
12.5
|
12
|
27
|
22
|
22
|
43
|
315
|
|
|
1CG-18-08
|
M18X1.5
|
G1/2＂X14
|
12
|
26
|
34
|
13
|
14
|
28
|
27
|
22
|
67
|
315
|
|
|
1CG-18-12
|
M18X1.5
|
G3/4＂X14
|
12
|
32
|
37
|
14
|
16
|
29
|
32
|
22
|
120
|
315
|
|
|
1CG-22-06
|
M22X1.5
|
G3/8＂X19
|
15
|
22
|
32.5
|
13.5
|
12
|
29
|
24
|
27
|
56
|
250
|
|
|
1CG-22-08
|
M22X1.5
|
G1/2＂X14
|
15
|
26
|
35
|
14
|
14
|
29
|
27
|
27
|
72
|
250
|
|
|
1CG-22-12
|
M22X1.5
|
G3/4＂X14
|
15
|
32
|
38
|
15
|
16
|
30
|
32
|
27
|
118
|
250
|
|
|
1CG-26-06
|
M26X1.5
|
G3/8＂X19
|
18
|
22
|
33.5
|
14
|
12
|
29.5
|
27
|
32
|
69
|
250
|
|
|
1CG-26-08
|
M26X1.5
|
G1/2＂X14
|
18
|
26
|
36
|
14.5
|
14
|
31
|
27
|
32
|
72
|
250
|
|
|
1CG-26-12
|
M26X1.5
|
G3/4＂X14
|
18
|
32
|
38
|
14.5
|
16
|
30
|
32
|
32
|
112
|
250
|
|
|
1CG-30-08
|
M30X2
|
G1/2＂X14
|
22
|
26
|
38
|
16.5
|
14
|
33
|
32
|
36
|
91
|
160
|
|
|
1CG-30-12
|
M30X2
|
G3/4＂X14
|
22
|
32
|
40
|
16.5
|
16
|
33
|
32
|
36
|
103
|
160
|
|
|
1CG-30-16
|
M30X2
|
G1＂X11
|
22
|
39
|
43
|
17.5
|
18
|
33.5
|
41
|
36
|
184
|
160
|
|
|
1CG-36-12
|
M36X2
|
G3/4＂X14
|
28
|
32
|
41
|
17.5
|
16
|
34
|
41
|
41
|
156
|
160
|
|
|
1CG-36-16
|
M36X2
|
G1＂X11
|
28
|
39
|
43
|
17.5
|
18
|
34
|
41
|
41
|
168
|
160
|
|
|
1CG-36-20
|
M36X2
|
G1.1/4＂X11
|
28
|
50
|
46
|
18.3
|
20
|
35
|
50
|
41
|
314
|
160
|
|
|
1CG-45-12
|
M45X2
|
G3/4＂X11
|
35
|
32
|
44
|
17.5
|
16
|
39
|
46
|
50
|
202
|
160
|
|
|
1CG-45-16
|
M45X2
|
G1＂X11
|
35
|
39
|
46
|
17.5
|
18
|
39
|
46
|
50
|
234
|
160
|
|
|
1CG-45-20
|
M45X2
|
G1.1/4＂X11
|
35
|
50
|
48
|
17.5
|
20
|
39
|
50
|
50
|
276
|
160
|
|
|
1CG-45-24
|
M45X2
|
G1.1/2＂X11
|
35
|
55
|
52
|
19.5
|
22
|
41
|
55
|
50
|
355
|
160
|
|
|
1CG-52-16
|
M52X2
|
G1＂X11
|
42
|
39
|
48
|
19
|
18
|
42
|
55
|
60
|
327
|
160
|
|
|
1CG-52-20
|
M52X2
|
G1.1/4＂X11
|
42
|
49
|
50
|
19
|
20
|
42
|
55
|
60
|
336
|
160
|
|
|
1CG-52-24
|
M52X2
|
G1.1/2＂X11
|
42
|
55
|
52
|
19
|
22
|
42
|
55
|
60
|
349
|
160
|
|
|
S
|
1DG-14-02
|
M14X1.5
|
G1/8＂X28
|
06
|
14
|
27.5
|
12.5
|
8
|
27
|
14
|
17
|
22
|
400
|
|
1DG-14-04
|
M14X1.5
|
G1/4＂X19
|
06
|
18
|
32
|
13
|
12
|
28
|
19
|
17
|
35
|
400
|
|
|
1DG-14-06
|
M14X1.5
|
G3/8＂X19
|
06
|
22
|
34.5
|
15.5
|
12
|
30
|
22
|
17
|
57
|
400
|
|
|
1DG-14-08
|
M14X1.5
|
G1/2＂X14
|
06
|
26
|
39
|
18
|
14
|
33
|
27
|
17
|
83
|
400
|
|
|
1DG-16-04
|
M16X1.5
|
G1/4＂X19
|
08
|
18
|
34
|
15
|
12
|
30
|
19
|
19
|
41
|
400
|
|
|
1DG-16-06
|
M16X1.5
|
G3/8＂X19
|
08
|
22
|
34.5
|
15.5
|
12
|
30
|
22
|
19
|
59
|
400
|
|
|
1DG-16-08
|
M16X1.5
|
G1/2＂X14
|
08
|
26
|
39
|
18
|
14
|
33
|
27
|
19
|
100
|
400
|
|
|
1DG-18-04
|
M18X1.5
|
G1/4＂X19
|
10
|
18
|
34
|
14.5
|
12
|
31
|
19
|
22
|
43
|
400
|
|
|
1DG-18-06
|
M18X1.5
|
G3/8＂X19
|
10
|
22
|
34.5
|
15
|
12
|
31
|
22
|
22
|
56
|
400
|
|
|
1DG-18-08
|
M18X1.5
|
G1/2＂X14
|
10
|
26
|
39
|
17.5
|
14
|
34
|
27
|
22
|
97
|
400
|
|
|
1DG-20-04
|
M20X1.5
|
G1/4＂X19
|
12
|
18
|
36
|
16.5
|
12
|
33
|
22
|
24
|
57
|
400
|
|
|
1DG-20-06
|
M20X1.5
|
G3/8＂X19
|
12
|
22
|
36.5
|
17
|
12
|
33
|
22
|
24
|
62
|
400
|
|
|
1DG-20-08
|
M20X1.5
|
G1/2＂X14
|
12
|
26
|
39
|
17.5
|
14
|
34
|
27
|
24
|
57
|
400
|
|
|
1DG-22-06
|
M22X1.5
|
G3/8＂X19
|
14
|
22
|
38.5
|
18.5
|
12
|
36
|
24
|
27
|
74
|
400
|
|
|
1DG-22-08
|
M22X1.5
|
G1/2＂X14
|
14
|
26
|
41
|
19
|
14
|
37
|
27
|
27
|
96
|
400
|
|
|
1DG-24-06
|
M24X1.5
|
G3/8＂X19
|
16
|
22
|
38.5
|
18
|
12
|
36
|
27
|
30
|
83
|
400
|
|
|
1DG-24-08
|
M24X1.5
|
G1/2＂X14
|
16
|
26
|
41
|
18.5
|
14
|
37
|
27
|
30
|
92
|
400
|
|
|
1DG-24-12
|
M24X1.5
|
G3/4＂X14
|
16
|
32
|
45
|
20.5
|
16
|
39
|
32
|
30
|
157
|
400
|
|
|
1DG-30-08
|
M30X2
|
G1/2＂X14
|
20
|
26
|
45
|
20.5
|
14
|
42
|
32
|
36
|
142
|
400
|
|
|
1DG-30-12
|
M30X2
|
G3/4＂X14
|
20
|
32
|
47
|
20.5
|
16
|
42
|
32
|
36
|
151
|
400
|
|
|
1DG-30-16
|
M30X2
|
G1＂X11
|
20
|
39
|
51
|
22.5
|
18
|
44
|
41
|
36
|
273
|
250
|
|
|
1DG-30-20
|
M30X2
|
G1.1/4＂X11
|
20
|
49
|
53
|
22.5
|
20
|
44
|
50
|
36
|
387
|
160
|
|
|
1DG-36-12
|
M36X2
|
G3/4＂X14
|
25
|
32
|
51
|
23
|
16
|
47
|
41
|
46
|
245
|
250
|
|
|
1DG-36-16
|
M36X2
|
G1＂X11
|
25
|
39
|
53
|
23
|
18
|
47
|
41
|
46
|
267
|
250
|
|
|
1DG-36-20
|
M36X2
|
G1.1/4＂X11
|
25
|
49
|
55
|
23
|
20
|
47
|
50
|
46
|
422
|
160
|
|
|
1DG-42-16
|
M42X2
|
G1＂X11
|
30
|
39
|
55
|
23.5
|
18
|
50
|
46
|
50
|
337
|
160
|
|
|
1DG-42-20
|
M42X2
|
G1.1/4＂X11
|
30
|
49
|
57
|
23.5
|
20
|
50
|
50
|
50
|
422
|
160
|
|
|
1DG-52-20
|
M52X2
|
G1.1/4＂X11
|
38
|
49
|
62
|
26
|
20
|
57
|
55
|
60
|
578
|
160
|
|
|
1DG-52-24
|
M52X2
|
G1.1/2＂X11
|
38
|
55
|
64
|
26
|
22
|
57
|
55
|
60
|
560
|
160
|
|
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CG-30-12/RN;需配挡圈请在代号后加“DQ”，如1CG-30-12DQ。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example 1CG-30-12RN；with retainer ring please insert suffix"DQ"after our part NO,for example 1CG-30-12DQ.
