VVVX系列不锈钢快速接头

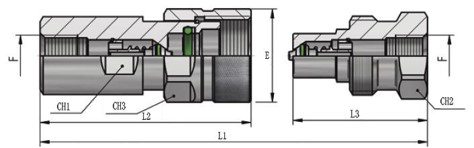

DN |
CH1 |
GH2 |
CH3 |
E |
L1 |
L2 |
L3 |
标准流量L/M |
最大流量L/M |
工作压力MPA |
F |
阴接头.(F) |
阳接头.(M) |
06 |
22 |
25 |
27 |
30 |
84 |
68 |
43.2 |
6 |
12 |
90 |
G 1/4 |
VVVX.0606.002 |
VVVX.0606.003 |
1/4 NPT |
VVVX.0606.012 |
VVVX.0606.013 |
|||||||||||
10 |
27 |
32 |
36 |
40 |
90 |
76 |
48 |
23 |
38 |
65 |
G 3/8 |
VVVX.1010.002 |
VVVX.1010.003 |
3/8 NPT |
VVVX.1010.012 |
VVVX.1010.013 |
|||||||||||
13 |
34 |
34 |
41 |
40 |
102 |
87 |
53 |
45 |
70 |
60 |
G 1/2 |
VVVX.1313.002 |
VVVX.1313.003 |
1/2 NPT |
VVVX.1313.012 |
VVVX.1313.013 |
|||||||||||
20 |
41 |
46 |
50 |
55 |
121 |
106 |
63 |
106 |
110 |
50 |
G 3/4 |
VVVX.2019.002 |
VVVX.2019.003 |
3/4 NPT |
VVVX.2019.012 |
VVVX.2019.013 |
|||||||||||
25 |
50 |
50 |
55 |
60 |
139 |
123 |
72 |
189 |
189 |
46 |
G 1 |
VVVX.2525.002 |
VVVX.2525.003 |
1 NPT |
VVVX.2525.012 |
VVVX.2525.013 |
|||||||||||
30 |
65 |
65 |
75 |
80 |
167 |
153 |
86 |
288 |
360 |
36 |
G 1-1/4 |
VVVX.3031.002 |
VVVX.3031.003 |
1-1/4 NPT |
VVVX.3031.012 |
VVVX.3031.013 |
|||||||||||
39 |
75 |
80 |
90 |
98 |
187 |
172 |
95 |
379 |
780 |
36 |
G 1-1/2 |
VVVX.3939.002 |
VVVX.3939.003 |
1-1/2 NPT |
VVVX.3939.012 |
VVVX.3939.013 |
|||||||||||
50 |
100 |
110 |
125 |
129 |
227 |
205 |
118 |
757 |
1000 |
21 |
G 2 |
VVVX.5051.002 |
VVVX.5051.003 |
2 NPT |
VVVX.5051.012 |
VVVX.5051.013 |
VVVX系列接头大量应用于高压、高流量环境,如油田及需要带阀的接头的高压环境、海洋应用;能够通过扳手连接.
特性:螺纹连接,适合高压工作环境,同时保持充足的流速,安全系列:3:1
密封件:氟胶密封圈及纯聚四氟乙烯支撑环、主要替换品牌:Faster VVS
材料:316不锈钢、规格:1/4“-2”、螺纹:NPT,BSP(G)、工作温度:-25℃~+200℃
螺纹连接,适合高压工作环境-高压的同时保持充足的流速(GPM)
安全系数:3:1表面处理:镀重铬白锌,碳氮共渗处理。
弹簧:碳钢接头配碳钢弹簧316不锈钢接头配302不锈钢弹簧
密封件:碳钢接头配标准NBR丁腈橡胶密封圈及纯聚四氟乙烯支撑环316碳钢配氟胶密封圈及纯聚四氟乙烯支撑环
